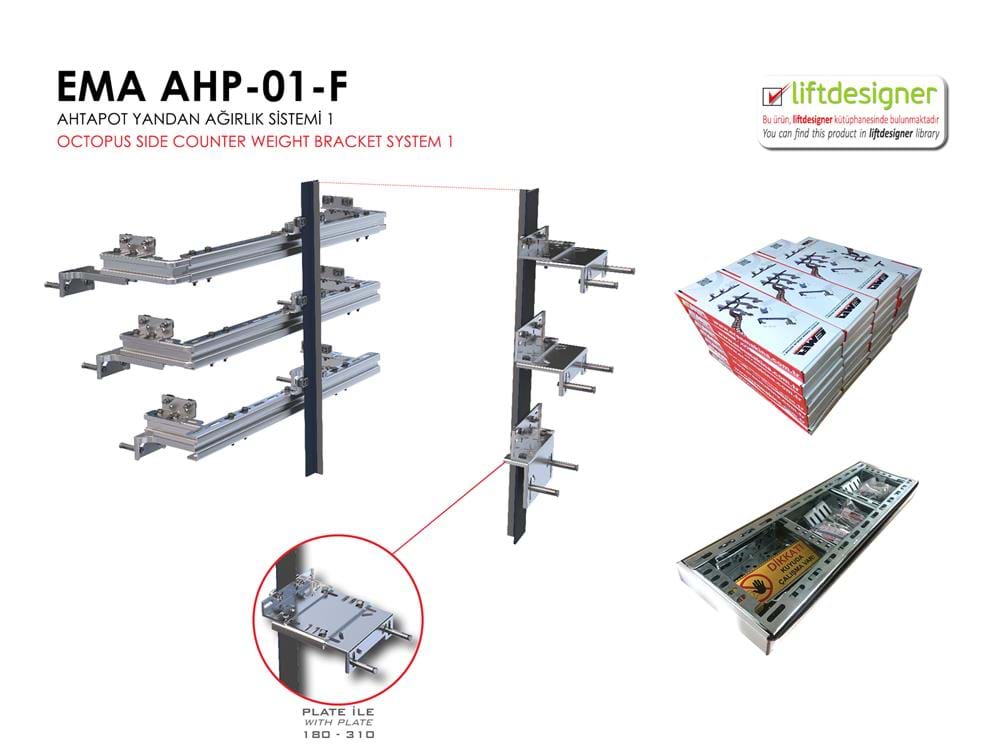

This is an Elevator Guide Tie Fixing Kit with Hoop and Side Weight Guides Fixing (Cantilever Elevator Type), which covers all the need from the bolt to the fixing clamp, with adjustable lateral weight hoops for elevators with lateral ballast.
Product Code: AHP-01-F
The car fixing brackets offer an adjustable opening of 50-180 mm with 3 different fixing positions bearing the EMA signature. The side weight hoop fixing compartments and the elevator rail guide fixing brackets are bolted and seamless it allows an adjustment of DBG from 700 to 1100 mm.
The Octopus 1 side weight brackets set is designed for lifts with a single row of counterweight casings. Hoist guide hoops and side weight compartments are made from certified sheet metal and are galvanized for cantilever type elevators.
Lift Side Weight Couterweight Frame Specifications
- Adjustable between a 700 to 1100 mm rail
- Cabine brackets opening from 50 to 180 mm
- Manufacture from certified steels sheets
- Galvanized coating
